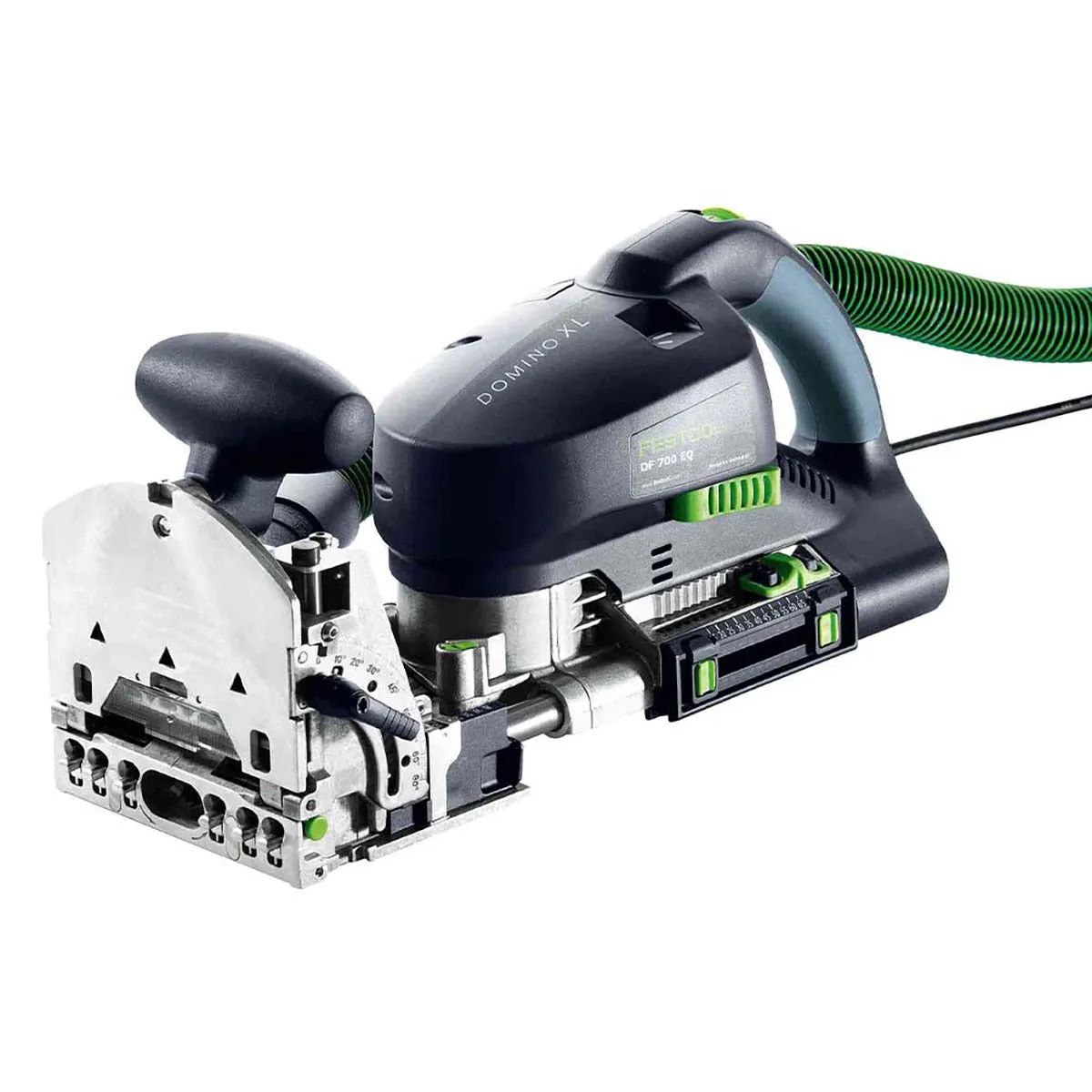

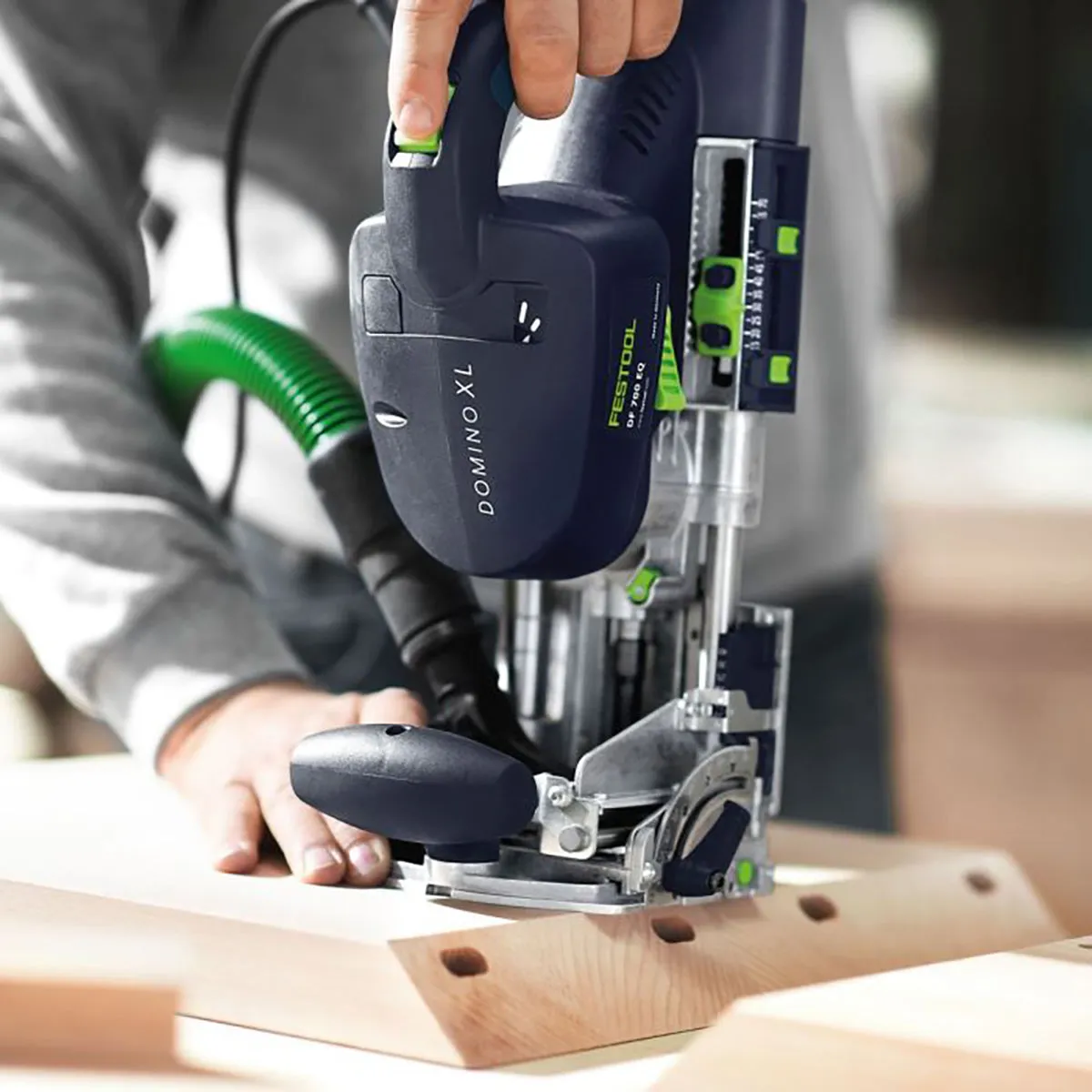

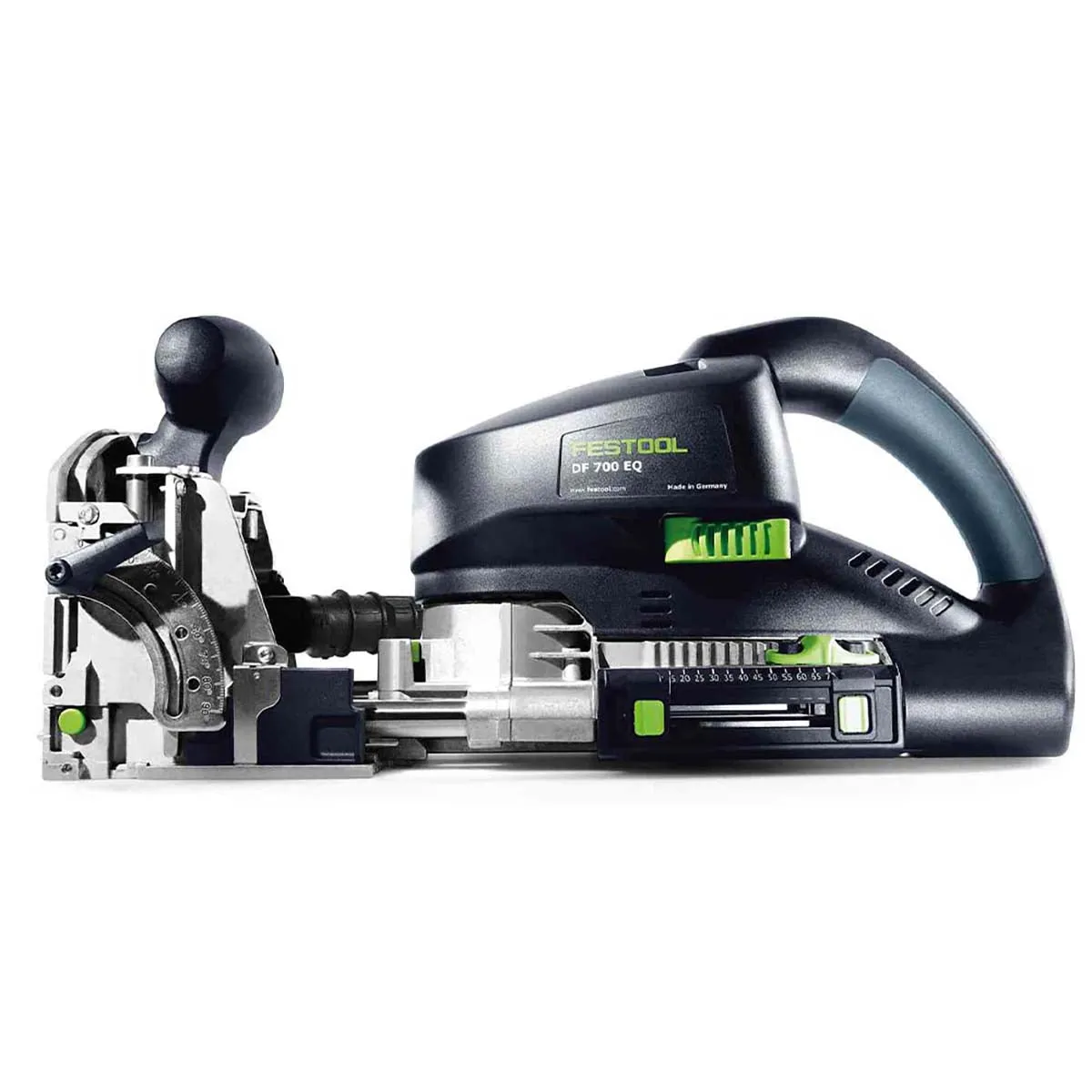

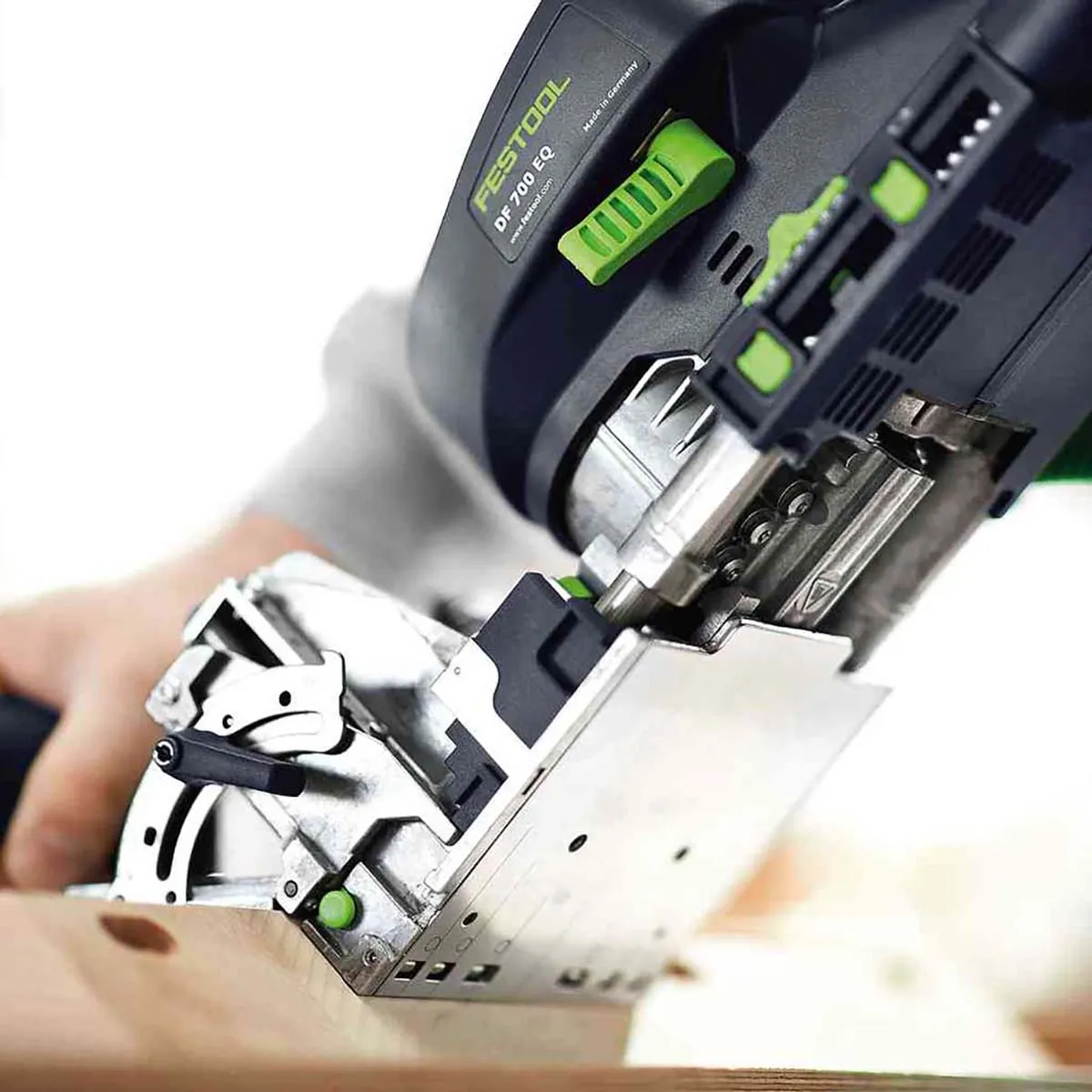

Festool DF 700 EQ-Plus 230V GB Domino XL Joining Machine - 576427 With Domino Connector Range 576797

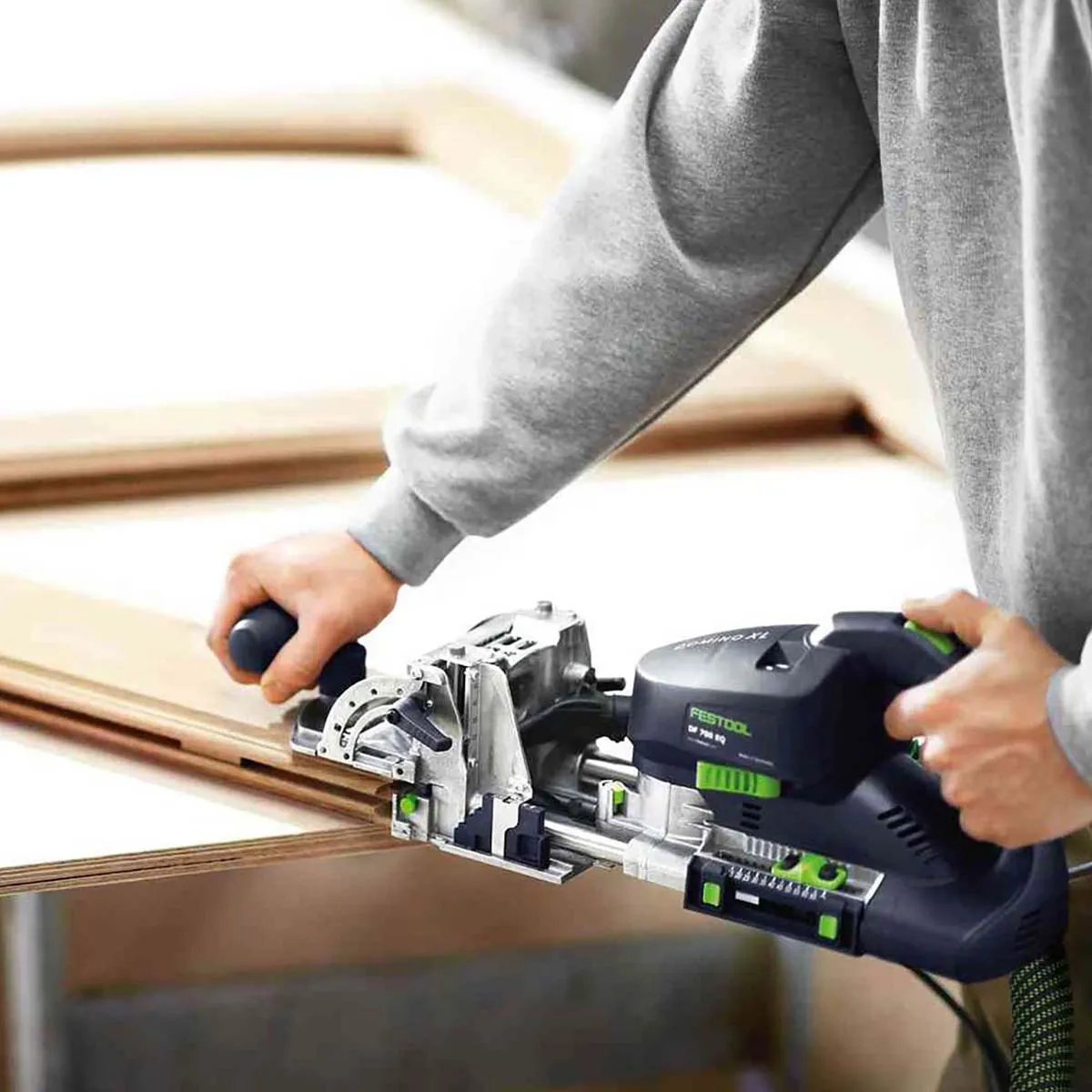

The Festool DF 700 EQ-Plus Domino XL is a powerful joining machine designed for fast. precise. and stable wood joints. It delivers exceptional joint strength with DOMINO sizes up to 14 x 140 mm. making it ideal for furniture. door construction. and solid wood projects. Its patented routing principle ensures accuracy with no kickbacks. enhancing safety and control. Compared to stationary machines. it significantly reduces tooling time. increasing efficiency by up to 50%. Quick and easy stop adjustments allow for precise and repeatable results. making it a top choice for professional woodworkers.

Features:

Festool DF 700 EQ-Plus 230V Domino XL Joining Machine:

Maximum stability of joints up to a DOMINO size of 14 x 140 mm
Patented routing principle unique to hand-held machines for accurate work with no kickbacks
Saves more time compared to a stationary machine
Stops that are quick and easy to adjust. for accurate results

Main Applications:

Solid wood furniture in frame and tunnel design
Frame construction of house doors and interior doors
Manufacture of tables and chairs
Creation of stable mitre joints
Folded and profiled door frames in furniture construction
Connection of wide cornices (e.g. plates)
Frame and stand constructions in non-supported timber structure (exterior and interior area)

Festool 576797 Domino Connector Range:

Clever DOMINO system enables very simple and precise positioning of joints. thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem. and you can do it easily on your own
The flush-screwed fixture elements protect each furniture component from being scratched
Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm
All DOMINO structure connectors and furniture connectors quickly at hand and cleanly packed in the Systainer

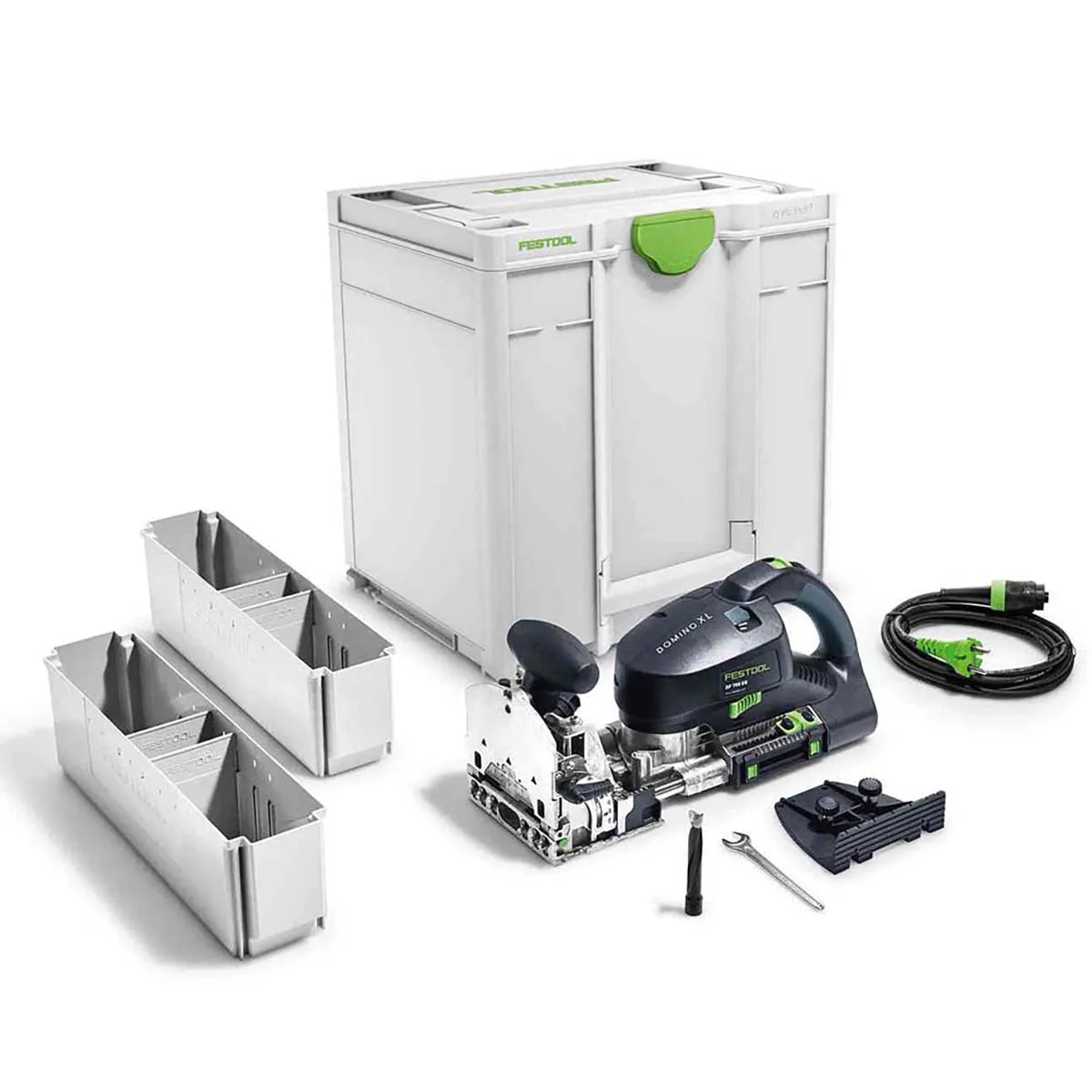

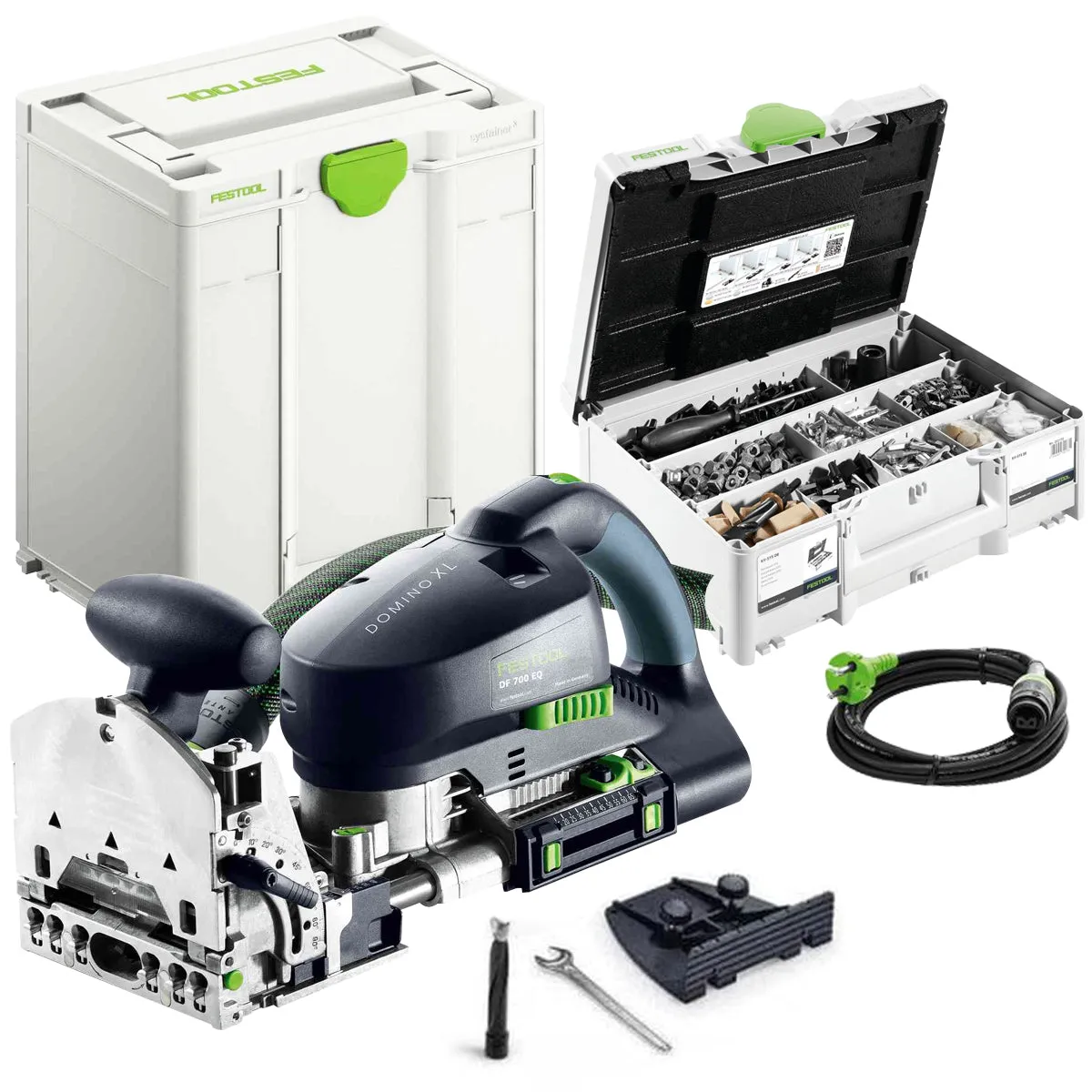

Comes With:

1 x Festool 576797 Domino Connector Range
1 x DOMINO Cutter D 12
1 x Additional Stop
1 x Empty Dowel Box
1 x Open Ended Spanner. WAF 12
1 x Plug it-ower Cable (4 m)
1 x Systainer SYS3 M 437

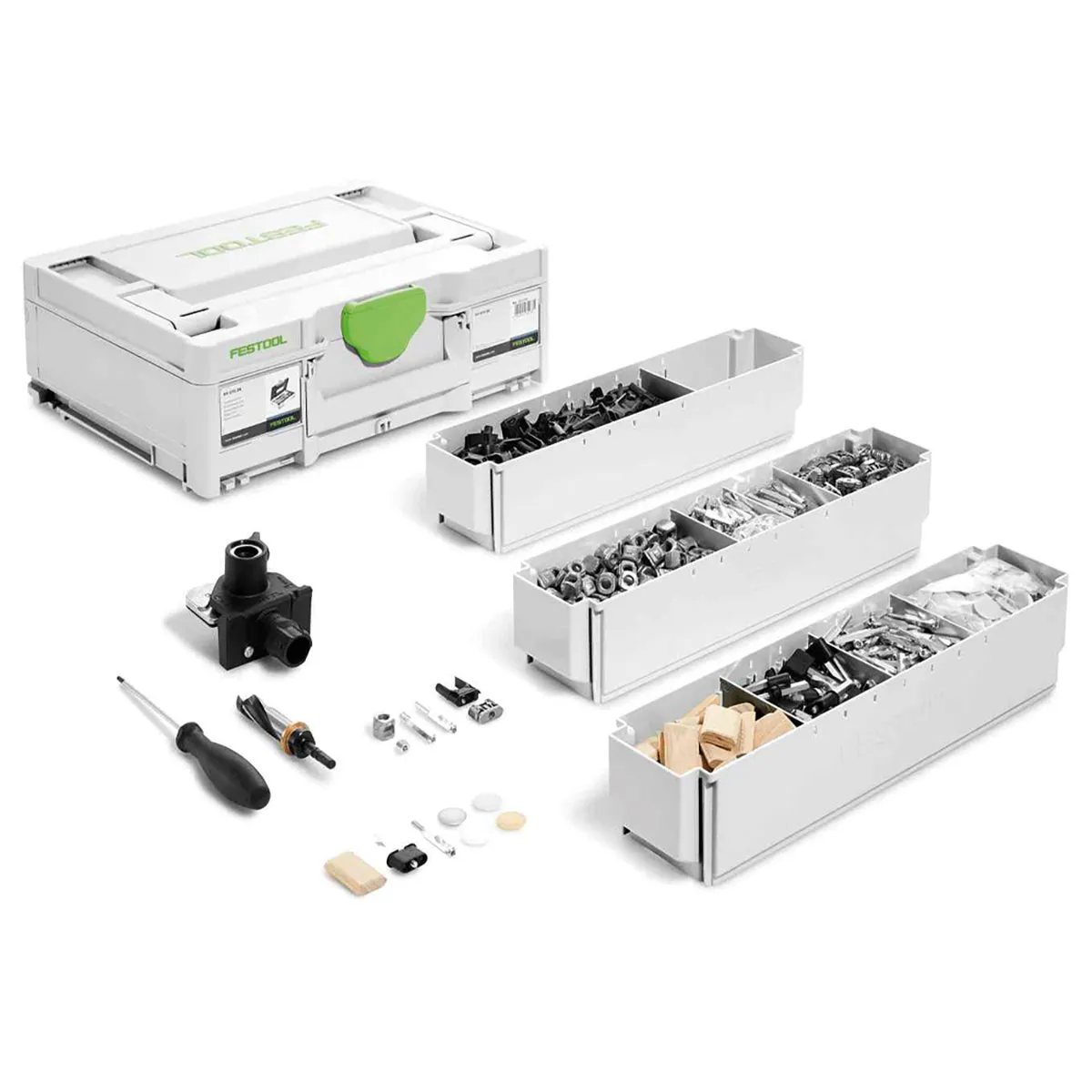

Festool 576797 Domino Connector Range Content:

70 x DOMINO/DOMINO KV D8 Basic Structure Connector
20 x DOMINO/LR32 KV-LR32 D8 Basic Structure Connector
10 x DOMINO/DOMINO MSV D8 Centre Panel Connector
10 x DOMINO/LR32 MSV-LR32 D8 Centre Panel Connector
50 x KV-AK D15 Light Brown Cover Caps
50 x KV-AK D15 Silver Cover Caps
50 x KV-AK D15 White Cover Caps
50 x KV-AK D15 Grey Cover Caps
20 x D 8 x 36 mm DOMINO
1 x BS-KV D15 Drill template
1 x KVB-HW D15 CE Hinge Location Cutter
1 x Screwdriver
1 x Systainer SYS3 M 137 Case

Product Specification:

Festool DF 700 EQ-Plus 230V Domino XL Joining Machine:

Part Number: 576427
Voltage: 230V
Power Consumption: 720 W
Idle Engine Speed: 21000 min
Depth Stop for Routing Depth: 15 - 70 mm
Max. Routing Depth: 70.00 mm
DOMINO Slot Cutter Dia.: 8. 10. 12. 14 mm
Routing Height Adjustment: 10 - 50 mm

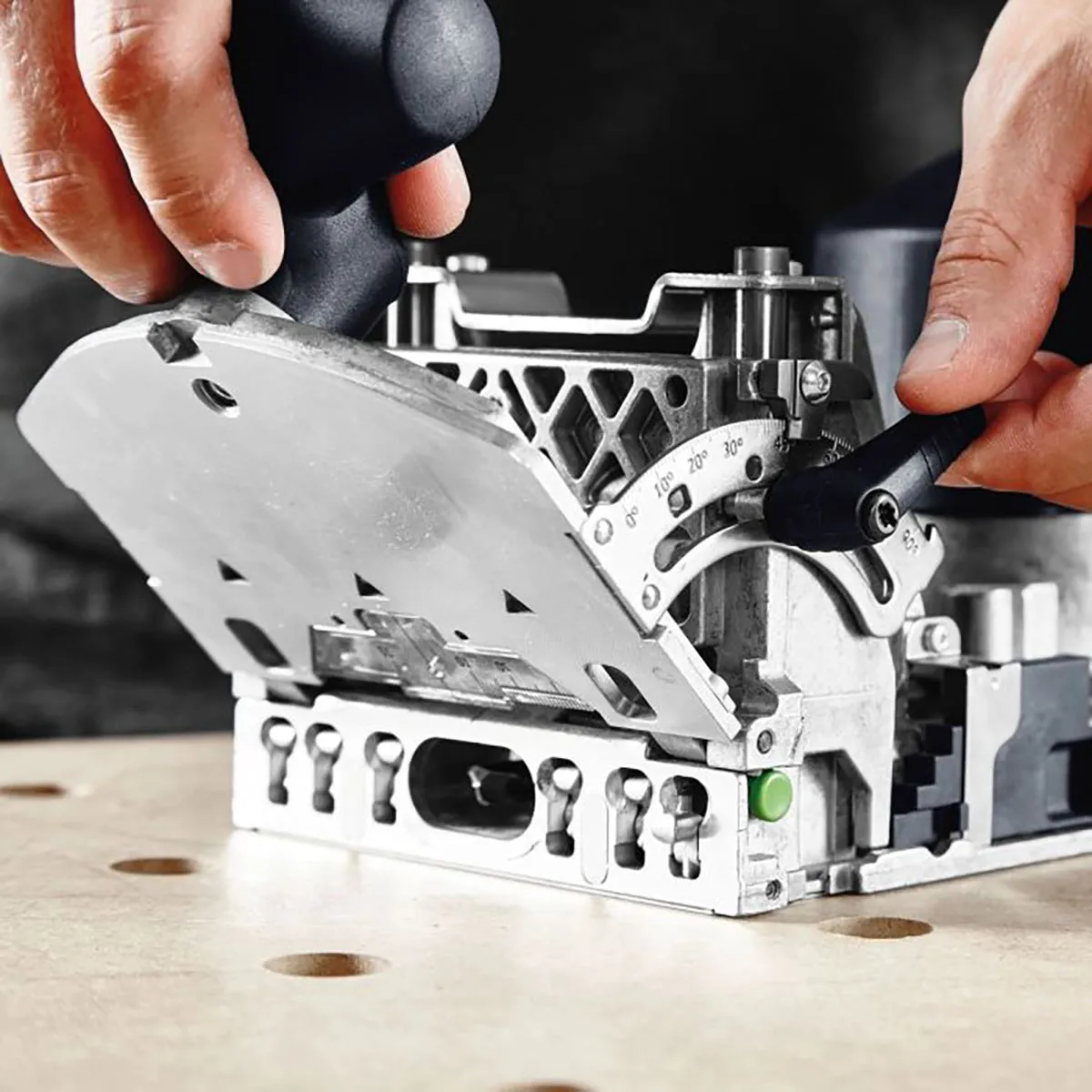

Mitre Routing: 0 - 90
Dust Extraction Connection Diameter: 27 mm
Cable Length: 4.00 m
Product Weight without Accessories: 5.50 kg
Transport Weight incl. Accessories: 10.23 kg
Drive Type: Mains
